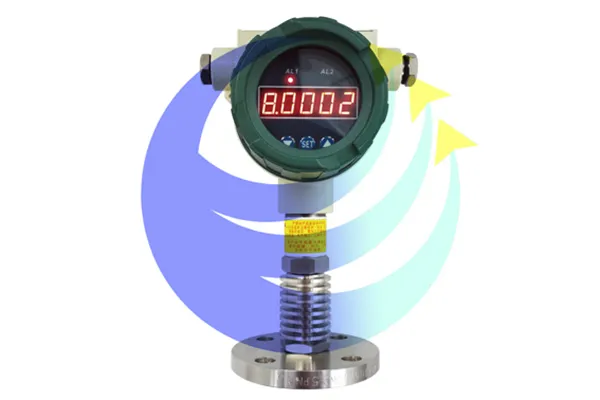

AO910PS Intelligent digital pressure switch
Power supply: 220VAC or 24VDC
Output: Two sets of relays with independent alarm points (normally open and normally closed contacts)
Output: Optional 4-20mA transmission output with one channel
Display: 5-digit high-precision high brightness LED digital display
Settings: Use buttons to operate the corresponding menu
Sensor: Optional diffusion silicon and ceramic capacitors (fully imported)
Process connection: M20 * 1.5NPT flange, etc
Hygiene type: Support
Heat sink: optional
Oil filling: Various types of diaphragms above DN25 can be optionally selected
Intrinsic safety: not supported
Communication: Not supported
HART: Not supported
Temperature compensation: Built in Aotai 2018's brand new temperature compensation algorithm
Alarm settings: High or low alarms can be set,
Alarm dead zone: can be set digitally continuously (also known as hysteresis)
Response time: less than 0.5 seconds
