measuring principle

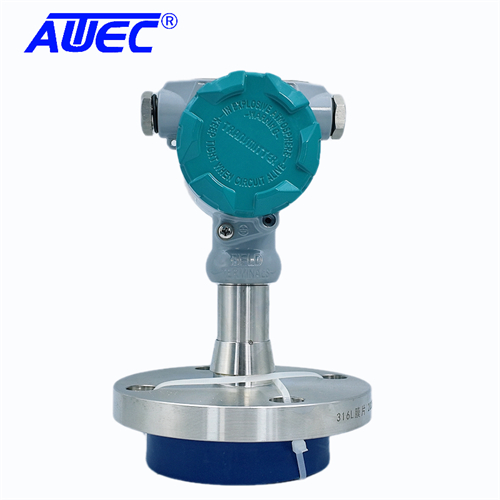

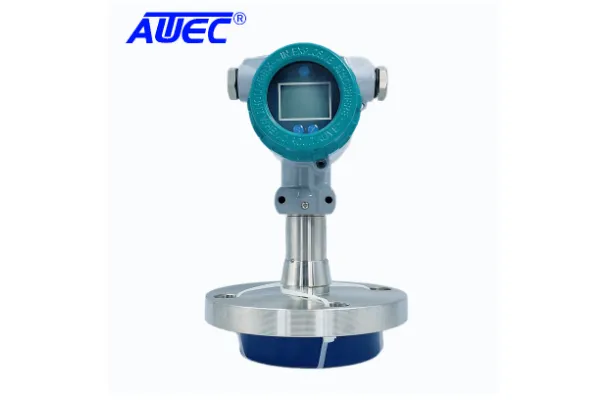

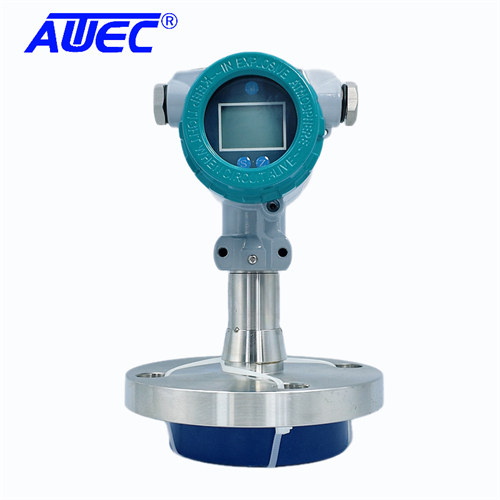

The product utilizes an oil filled isolation diaphragm to transmit pressure, preventing the measuring element from coming into contact with the measured medium. It can meet the needs of the food, pharmaceutical, and biotechnology industries, and the use of high-quality materials meets hygiene standards. High quality surface technology enables the roughness of the liquid receiving part to reach Ra=0.4um (welding area: Ra<0.8um).

Through various aseptic connection measures, the process connection is based on hygiene requirements, with a fully welded stainless steel shell and a protection level of up to IP67. The use of radiator components can enable the product to adapt to a process temperature of 200 ℃.

main features

Aseptic connection;

Materials and surface quality according to hygiene requirements;

Optional cooling components;

Liquid receiving materials: 316L, TAN, HAS-C, MONEL, 316L coated with PTFE, 316L coated with gold;

Explosion proof: intrinsically safe (to be used in conjunction with input type safety barriers), explosion-proof;

Resistant to vacuum and overload;

Sanitary type according to EHEDG, FDA, GMP standards;

Application scenarios

Suitable for food, medicine, biotechnology and other occasions, in compliance with hygiene standards.
