measuring principle

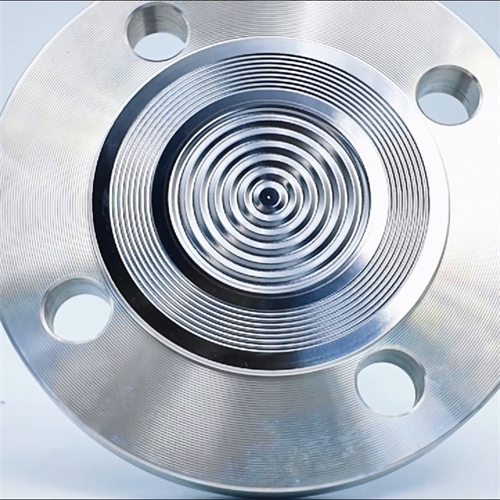

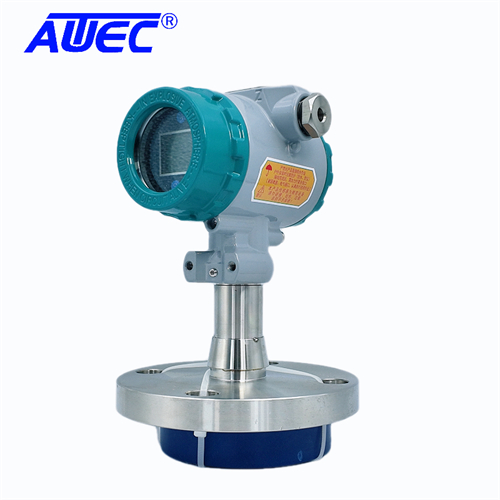

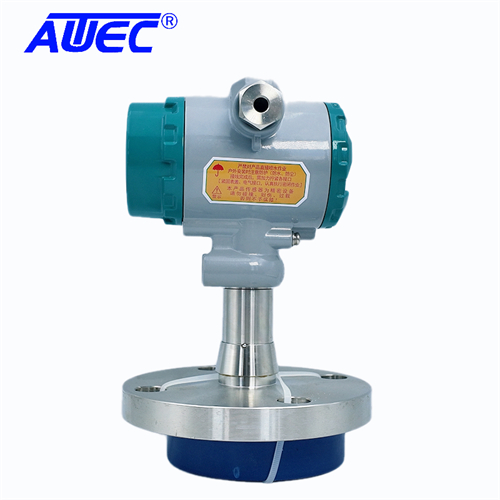

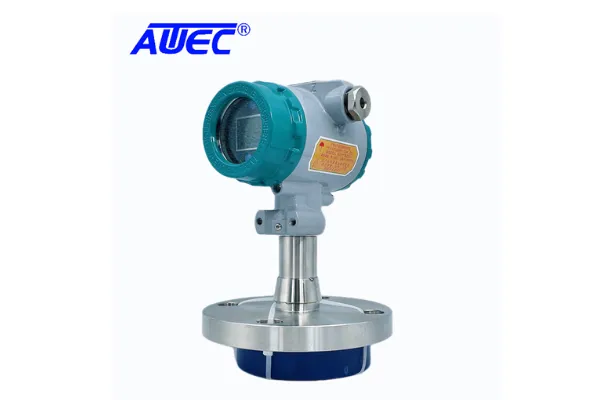

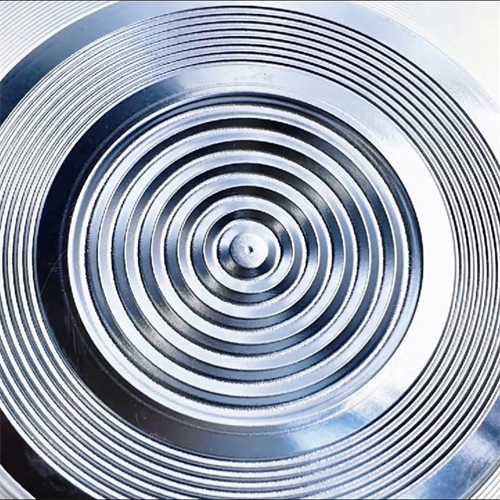

The AO952 product utilizes an oil filled isolation diaphragm to transmit pressure, and synchronously uses high-precision and high overload capacity monocrystalline silicon sensors to prevent the measuring element from contacting the measured medium. It can meet the needs of the food, pharmaceutical, and biotechnology industries, and the use of high-quality materials meets hygiene standards. High quality surface technology enables the roughness of the liquid receiving part to reach Ra=0.4um (welding area: Ra<0.8um).

Through various sterile connection measures, the process connection is based on hygiene requirements, with a fully welded stainless steel shell and a protection level of up to IP67. The use of radiator components can

To adapt the product to a process temperature of 200 ° C.

Main principles

High precision, high overload;

● Aseptic connection;

Materials and surface quality that meet hygiene requirements;

● Optional cooling components;

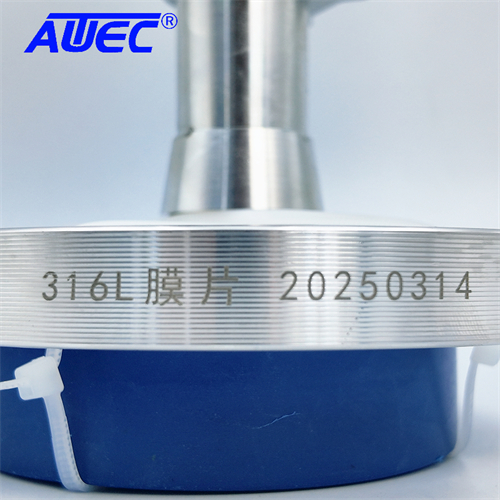

● Wetting materials: 316L, TAN, HAS-C, MONEL, 316L coated with four gases, 316L coated with gold

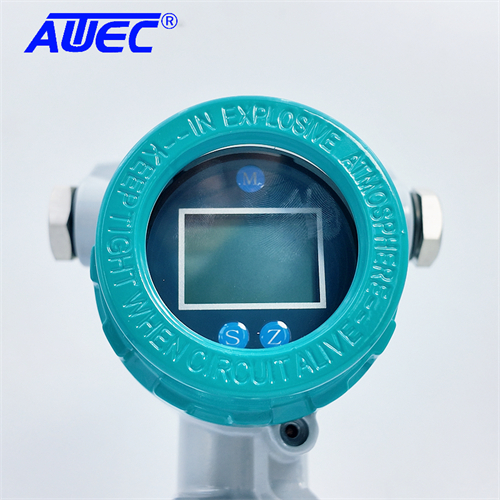

Explosion proof: intrinsically safe (to be used in conjunction with input type safety barriers), explosion-proof;

● Vacuum resistant and overload resistant;

Hygiene type according to EHEDG, FDA, GMP standards:
