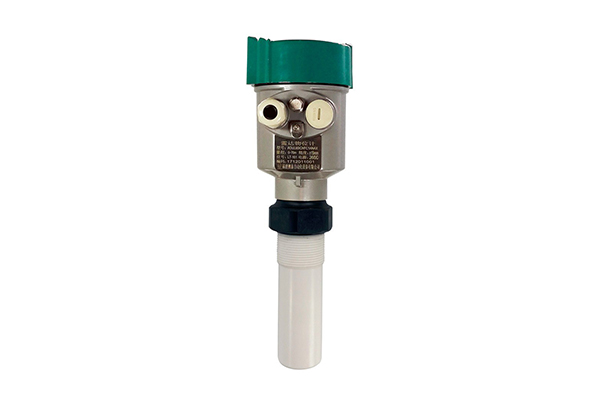

AOUL64 Rod antenna radar

The anti-corrosion rod type radar level gauge and enclosed anti-corrosion antenna are designed for small-sized liquid tanks to solve high-precision measurement of corrosive liquids.

Small DN50 flange

Weak signal

Below 10 meters range

Blind spot 0.4 meters

Has certain resistance to water vapor and condensation

Beam angle: 12 degrees

There is actually a small antenna built in front of the probe

Frequency 26GHz

Measurement distance 10m (liquid)

Resolution 1mm

Accuracy ± 10mm

Return deviation ± 5mm

Blind spot 0.4m

Measurement interval ≥ 1s, according to the set parameters

Response speed ≥ 5s, according to the set parameters

Beam angle 22 °

Size (excluding flange) 120 * 94 * 320mm

Install flanges DN50, DN80, DN100, DN150

Process temperature -40 ℃ -85 ℃

Process pressure and atmospheric pressure

Relative humidity<95% RH

Antenna material PTFE

Power supply 16-36VDC two-wire/four wire system (HART), 9-24VDC four wire system (RS485)

Signal output HART/4-20mA/RS485

Fault output remains unchanged at 22mA/20.5mA/4mA

Large load 500 Ω

Communication HART/RS485

On site display LCD panel

Protection level IP67

Cable entrance M20x1.5

Recommended cable AWG18 or 0.75mm2 cable

Electrical connection
